| Part Name | serial number | project | Parameter value/specification | No.:SD650DQY-T800LA |
| Complete vehicle | 1 | Appearance | Iron sanitation truck technical parameters front bumper | |
| 2 | front fork | Hydraulic thickened shock-absorbing front fork |
| 3 | Bearing weight | Loading capacity≥400kg |
| 4 | maximum speed | ≤26km/h |
| 5 | Reverse speed | ≤12km/h |
| 6 | Continued mileage | 25km |
| 7 | gradeability | ≤15% | |
| 8 | weight | ≤200kg | |
| 9 | Dimensions | 2680*850*1280mm | |
| 10 | Wheelbase | 680mm | |
| 11 | Wheelbase | 1800mm | |
| 12 | battery location | Frame battery box | |
| 13 | Ground clearance | 220mm | |
| 14 | Tire model | Front 300-12, Back 300-12 | |
| warning device | 1 | headlight | Round headlight | |
| 2 | rear light | Turn signal, brake light, driving light integrated tail light | |
| car | 1 | Material | 1mm galvanized sheet | |
| 2 | size | 1200*850*760mm | |
| 3 | Door opening direction | Front door opening/rear door opening upward | |
| 4 | Volume | 800L | |
| battery | 1 | Battery Type | Lead-acid maintenance-free Chaowei\Tianneng | |
| 2 | battery capacity | 20A | |
| 3 | battery voltage | 48V | |
| motor | 1 | Output Power | 650W | |
| 2 | Motor voltage | 48V | |
| controller | 1 | Specification requirements | 15 tubes | |
| 2 | Rated voltage | 48V | |
| rearview mirror | 1 | model | Special for sanitation trucks | |
| Hydraulic roof | 1 | model | Hydraulic double strut | |
| Total cost | 1 | | | |

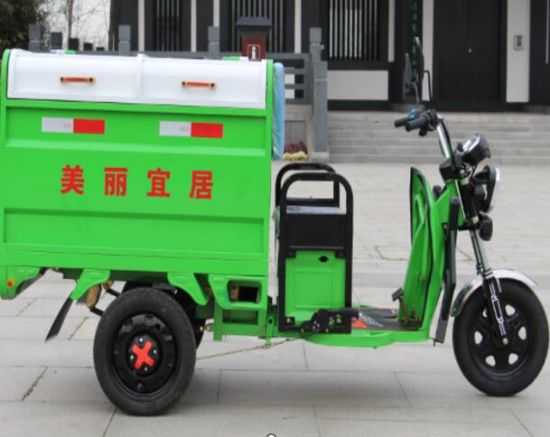

| Product function introduction: This model has a 1.0mm galvanized plate compartment with a fully enclosed and sealed structure. The lid on the top of the box can be opened to put garbage in. The overturning mechanism adopts a labor-saving lever mechanical mechanism with an automatic locking device and can turn over at one time, which greatly saves the labor intensity of sanitation workers and improves work efficiency. |
|
