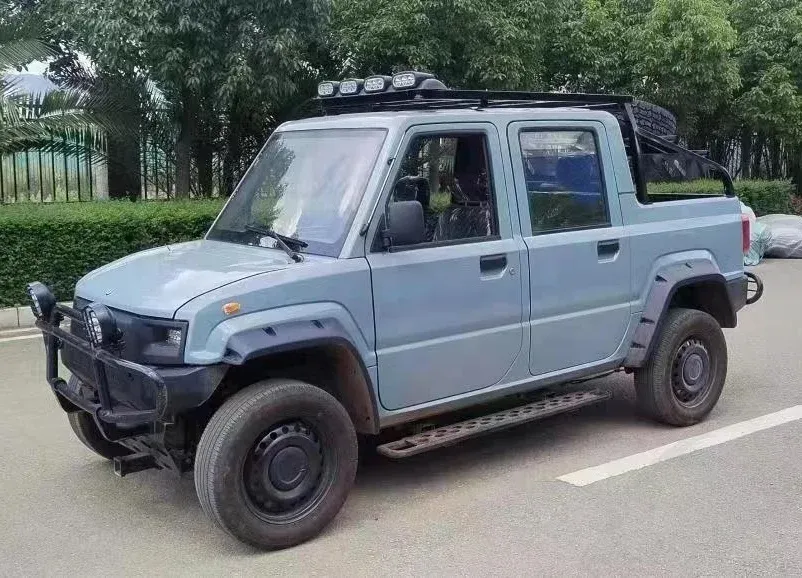

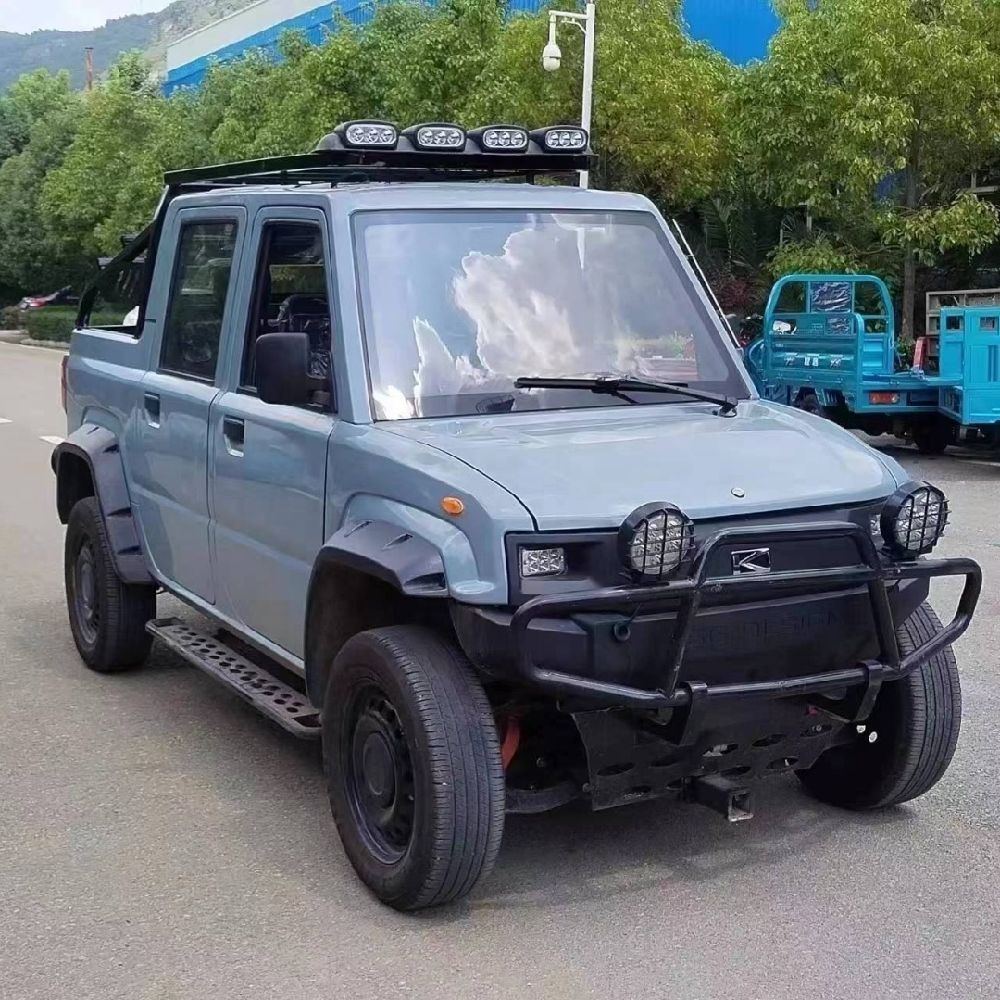

4WD 4x4 Double Cab 4 Seats Mini Electric Power Passenger Pick Up Truck
| |
Length × width ×height (mm)
|
3655×1340×1560
|
Internal dimension of container (L×W×H)(mm)
|
900×1315×400
|
Wheelbase (mm)
|
2520
|
Front wheel base (mm)
|
1195
|
Rear wheel base (mm)
|
1185
|
Front suspension (mm)
|
455
|
Rear suspension (mm)
|
705
|
Preparation mass (kg)
|
885
|
Cargo quantity (kg)
|
150
|
Seats
|
4
|
Total mass (kg)
|
1245
|
| |
Maximum speed (km/h)
|
85km/h
|
Acceleration time S (0-40km)
|
20
|
Grade Ability
|
35%
|
Minimum turning diameter (m)
|
≤9
|
Maximum turning Angle
|
36.3(External) /42(Internal)
|
Angle of approach (°)
|
≥55
|
Departure Angle (°)
|
≥35
|
Minimum ground clearance (mm, no load)
|
≥200
|
| |
Steel Pipe door
|
Optional
|
Container
|
Rear open flat container
|
| |
Power battery Specifications (V/Ah)
|
72V ,206Ah - lithium iron phosphate battery
|
lithium battery
|
○ 280AH optional
|
Mileage continued (no load)(km)
|
120-180KMS
|
Type of battery
|
lithium iron phosphate battery
|
Battery charger
|
110 - 220V vehicular(wide voltage)
|
Charging time (h)
|
6~8
|
100km power consumption (KWH)
|
6.5
|
The motor type
|
Asynchronous motor
|
machine controller
|
Dual motor controller
|
Motor power (kW)
|
10.5 KW
|
Imbor 3527 controller
|
-
|
Imbor 3528 controller
|
-
|
| |
Driving Mode
|
Rear/four-wheel drive(4x4 4WD)
|
Front Suspension
|
Double cross arm helical spring independent suspension
|
Rear Suspension
|
Vertical plate spring (3 pieces)
|
Drive axle assembly
|
Front axle 6.77 rear axle 7.99
|
Front brake
|
Disc brake
|
Rear brake
|
Drum brake
|
tyre
|
Steel wheel 15 Inch
|
Dual aluminum rims and tires
|
-
|
Black and white aluminum rim + mountain inner and outer tire
|
-
|
Adventurer aluminum rim + mountain inner and outer tire
|
-
|
Tyre Size
|
195/65 R15
|
Steering structure
|
pinion and rack
|
power-assisted steering
|
●
|
The brake booster
|
●
|
Internal/external configuration
| |
windscreen wiper
|
●long
|
spray system
|
●
|
door lock
|
Electric
|
car window
|
Electric
|
On-board screen
|
●
|
USB Charging port inside car
|
●
|
Electric outlet of cigarette lighter
|
●
|
combination switch
|
●
|
seat type
|
Four - way adjustable, with headrest, with map pocket
|
Independent seats for master and deputy
|
-
|
rear seat
|
Long seat, folding,with head rest
|
Rear seat with headrest
|
○
|
sun shield
|
driver●/ passengers●
|
Ceiling interior panel
|
●
|
The roof rails
|
3
|
warm air blower
|
●
|
Refrigeration air conditioner(AC)
|
○
|
Range Extender
|
○ optional
|
Towing hook (with signal line)
|
○
|
Interior rearview mirror
|
●
|
Dome light
|
Integrated into the visor
|
Instrument category
|
Liquid crystal digital instrument
|
Headlight type
|
LED
|
Rear lamp type
|
LED
|
Front Searchlight
|
●
|
Spotlight
|
●
|
rear registration plate lamp
|
●
|
Low speed engine simulator
|
○
|
side reflex reflector
|
●
|
safety belt
|
Main/Auxiliary ● (three-point)
|
Forward engine room storage tank
|
●(small)
|
Reverse Camera
|
●
|
wheel brow
|
○
|
car cover
|
○
|
headrest
|
-
|
Container Treasure (polyurea spraying)
|
○
|
child safety lock
|
●
|
mobile phone support
|
●
|
Front Bumper
|
-
|
European version front guard bar
|
-
|
Front guard bar with small and large light bracket without license plate mounting plate
|
Front baffle with a cut
|
rear bumperr
|
●
|
pedal
|
●
|
The tail logo
|
●
|
DOT mark (Pickman tail)
|
●
|
Emark identifier (Pickman tail)
|
-
|
Roll cage
|
●
|
The instrument type
|
72 v new instrument
|
110 v battery charger
|
○
|
American standard charger plug
|
○
|
European standard charger plug
|
○
|
British standard charger plug
|
○
|
Italian standard charger plug
|
○
|
British instrument
|
○
|
