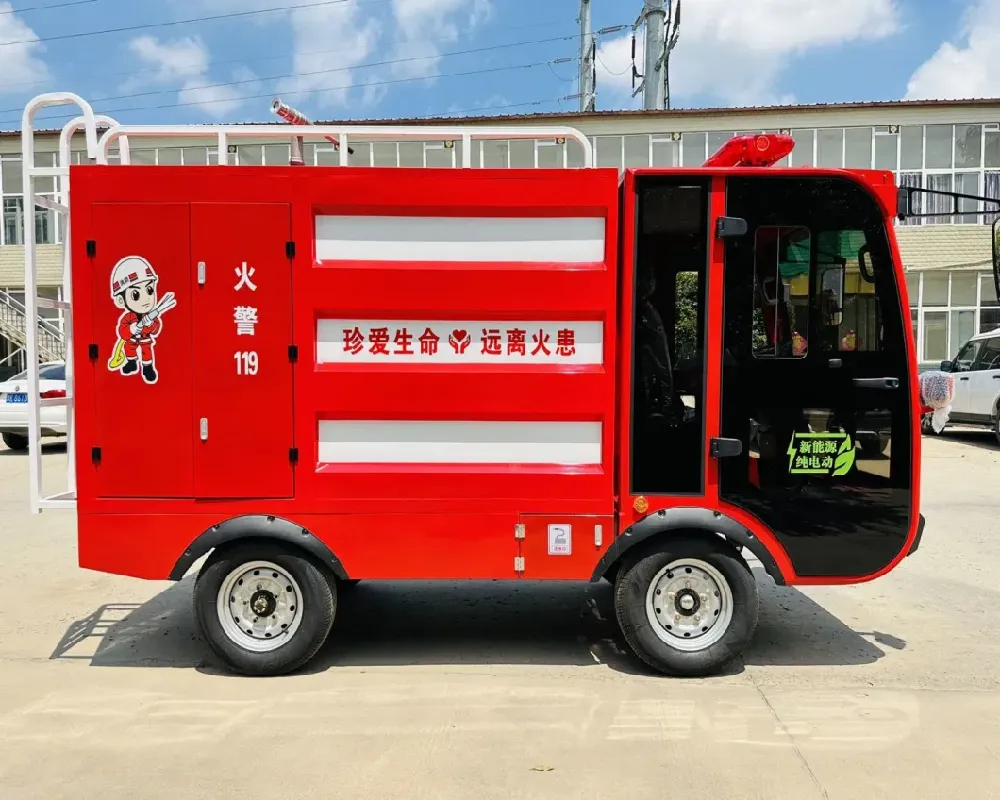

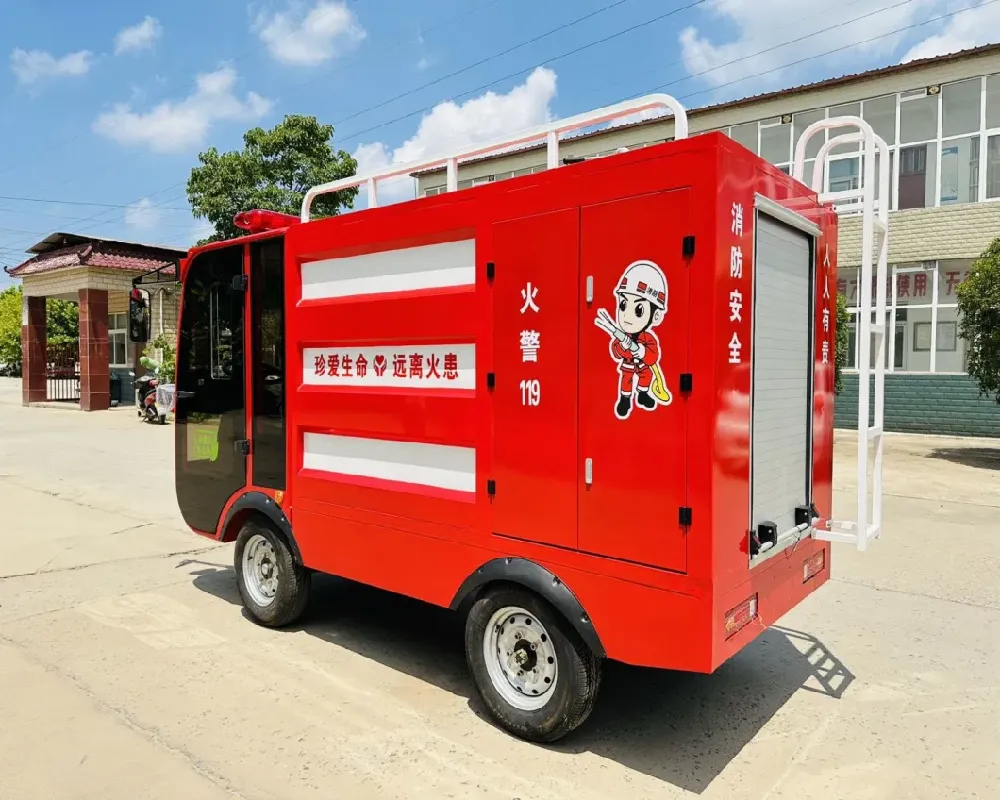

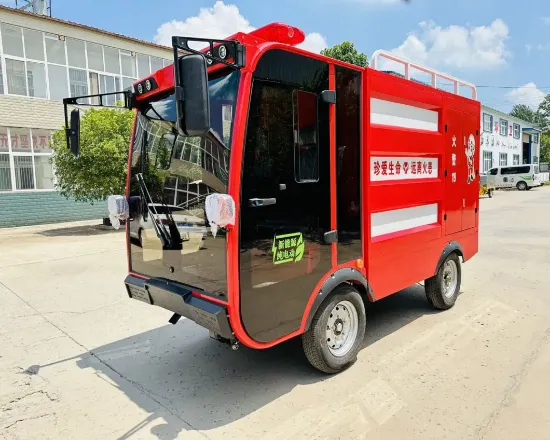

| Product name | Electric four-wheel fire sprinkler-XF10SD |
| Rated occupant | Two people |
| Technical parameter | importance
dimension | Overall dimensions (L × W × H) | 3800×1300×2300mm |
| Tank volume | 1 ton |
| Front track | 1150mm |
| Rear track | 1150mm |
| wheelbase | 1800mm(±10) |
| Ground clearance | 170mm |
Quality
argument | Quality of service | 1280kg | Rated load | 1000Kg |
Vehicle
property | Travel speed | ≤20Km/h | Minimum turning radius | 4000mm |
| range | ≤40Km | Maximum gradient | 15% |
professional
argument | Maximum lift | 15m | Maximum working flow | 45m³/h |
| Maximum working pressure | 0.55Mpa | Working hours | 270S |
| Main configuration | Electric control
System | Electric control | 60V Dc brushless |
| battery | 60V120Ah(Lead-acid liquid battery) |
| Electric machine | 60V3000W Dc brushless motor |
| recharger | Smart charger(60V15Ah) | Battery model determines the charger model |
| Charging time | 6-8h | The temperature affects the charging time |
body
disposition | cab | Closed frame structure steel cab, glass doors, electric wiper, electronic display instrument, adjustable leather seat, large field of view without dead Angle mirror |
| Lights and signals | Double headlights + turn signal + brake light + rear tail light + reverse horn + long row of warning lights |
| Carriage body | The material of the carriage is reinforced with 1.2mm thick cold plate folding slot. The fully closed carriage has a plastic water tank inside, and the rear aluminum alloy rolling shutter door |
| Dynamic configuration | Electric starting GX160 gasoline engine |
| Fire fighting equipment | Fire hydrant connector, 20 meters fire belt, fire hose, dry powder fire extinguisher two sets, with helmet rubber shoes set of fire suit, shovel and fire axe each |
| Accessory configuration | Car kit, fire wrench |
| Water spraying mode | Gimbaled anti-aircraft gun on top of the carriage |
| Effluent control mode | Fire high pressure water manual control |
Base plate
disposition | frame | Square tube frame |
| tyre | 165-13 |
| Steering mode | Worm steering machine |
| Brake system | Front and rear independent double pipe, hydraulic drum self-adjusting brake system, auxiliary manual manipulator parking |
| Front and rear suspension | Bearing type steering front axle, bridge tube thickness 5mm, straight 60mm, hydraulic drum brake, 220mm large diameter brake drum; The rear suspension is a load-bearing spring plate damping system |
| Rear axle | Differential integrated high and low speed rear axle, not less than 250mm large diameter split brake drum, not less than 30 thick half-shaft, not less than 76mm half-shaft shaft tube thickness 5mm, hydraulic drum brake |
| Body color | Red and white (customizable LOGO) |
| Product characteristics | 1, the body adopts streamline modeling explosion-proof laminated glass, smooth lines, strong and durable, novel and beautiful;
2, equipped with meridian vacuum tire, wear resistance, long service life;
3, hydraulic brake, with good stability and safety;
4, built-in fire pump, equipped with high pressure water cannon, can be completed long-distance fire
5, equipped with fire extinguishers and fire extinguishing tools, flexible to meet various fire extinguishing needs. |
