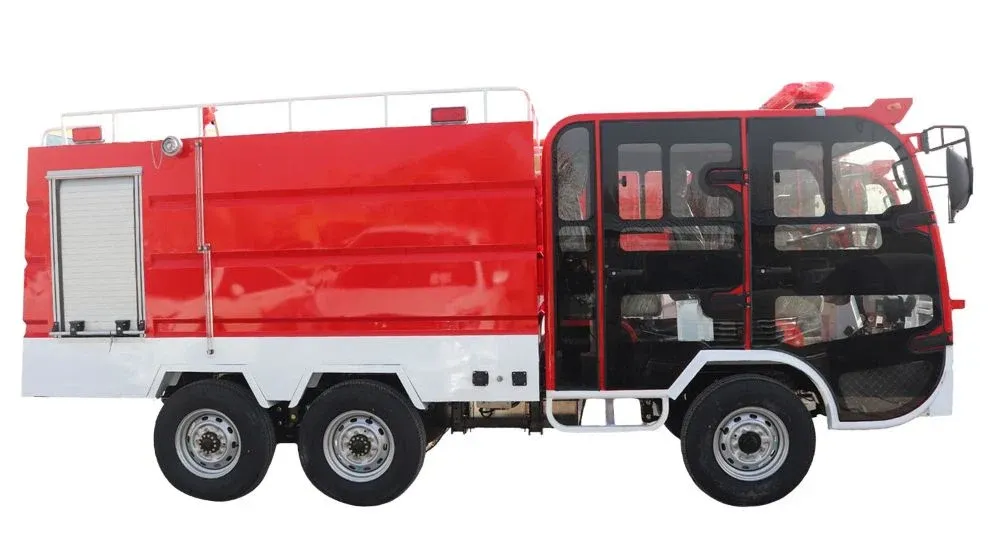

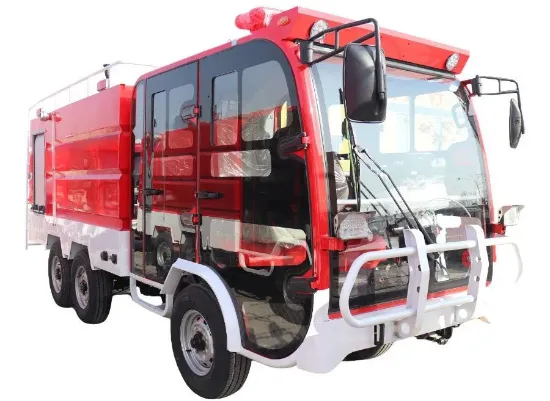

| No. | Model Name | AL-X1 Fire Truck |
| Vehicle parameters |
| 1 | Outer dimensions | 5200×1500×2200 mm |
| Maximum total mass | 7500 kg |
| Liquid carrying capacity | 3500 kg |
| Maximum speed | 40 km/h |
| Fire pump rated flow | 600L/min 0.55MPa |
| Fire monitor rated flow rate | 650L/min 0.55MPa |
| Fire cannon range | ≥ 45m |
| Approach angle/departure angle | 23°/21° |
| Minimum ground clearance | 190 mm |
| Braking distance | 7 m |
| Battery life | 80-100 km(the full load) |
| Battery mileage | Battery range of 100 kilometers |
| Car mounted intelligent charger, waterproof and dust-proof design, with high temperature warning and automatic power-off function |
| Main parameters of the chassis |
| 2 | Model | XF02-1/HW09-1 |
| Rated power of motor | 7.5 kw *2 |
| Engine peak power | 15 kW *2 |
| Engine type | 175-7.5-7*2 |
| Motor type and power | Communication asynchronous,
15 kw |
| Driving form | 6×4 rear independent dual drive |
| Braking system | Front and rear drum hydraulic brakes, dual-circuit hydraulic brakes, parking brake device |
| Braking distance | < 30m |
| Tires | The front and rear wheels are steel rim tubeless tires |
| Wheelbase | 2050 mm /850 mm |
| Maximum allowable total weight | 7500 kg |
| Axle load mass | Front Axle:2500 kg,
Rear Axle:5000 kg |
| Minimum turning radius | ≤ 6m |
| Transmission form | Single-stage automatic
transmission*2 |
| Charging voltage | 220V |
| Charging time | 6-8 hours |
| Climbing slope | 21% |
| Transmission speed ratio | 18:1 |
| Battery form | Lithium Ion Battery |
| | Battery capacity | 72V /200Ah |
| Chassis and frame | High strength steel frame, steel bumper, chassis number tapping on the frame. |
| The chassis meets the requirements of advancement, reliability, stability. |
| Passenger compartment |
| 3 | Structure | Flat head, four doors, double row |
| Number of drivers / passengers | 4 |
| Driver position | Left-drive, integrated seat backrest adjustable with headrest |
| Rearview mirror | Wide-view rearview mirror on the left and right outside |
Instrument board equipped with fireman control panel and warning light control box.
1. Alarm system included warning lights and megaphones;
2. Reversing image;
3. Electric steering and brake booster;
4. Flash
5. Radio power cord pile head
6. The cab is equipped with positioning device, and the positioning technology of WGS84 (international standard) coordinate system. |
