Product Description and Main Features
1. 72V Inbol intelligent controller system.
2. Hanpuda 4000W alternator motor.
3. Big battery capacity,Long service life,good temperature resistance.
4. Leather steering wheel,easy to operate, Function area clearly.
5. Digital LCD Panel to show front and rear light, Speed, Battery remaining capacity.
6. Vacuum tire with aluminum wheel, Skid resistance and durable, make sure vehicle running stable and comfortable.
7. Antique design with high beams,can driving during the night.
8. PU seat with safety belt,make sure the passenger comfortable and safe.
9. Independent suspension system.
10. Very strong chassis system make sure the great loading capacity.
11. New and stylish design on the outlook and more popular.
12. Good service on after sales service.
Electrial System
Controller:72V Inbol intelligent controller
Motor:Hanpuda 4000 W alternator
Storage Battery:12V*6PCS,100AH
Traveling Range:90-120km
Battey charger:Vehicle-mounted intelligent charger
Charging Time:8-10Hours
Charger Voltage:Single phase,220V
GW:920 KGS
Technicial Data

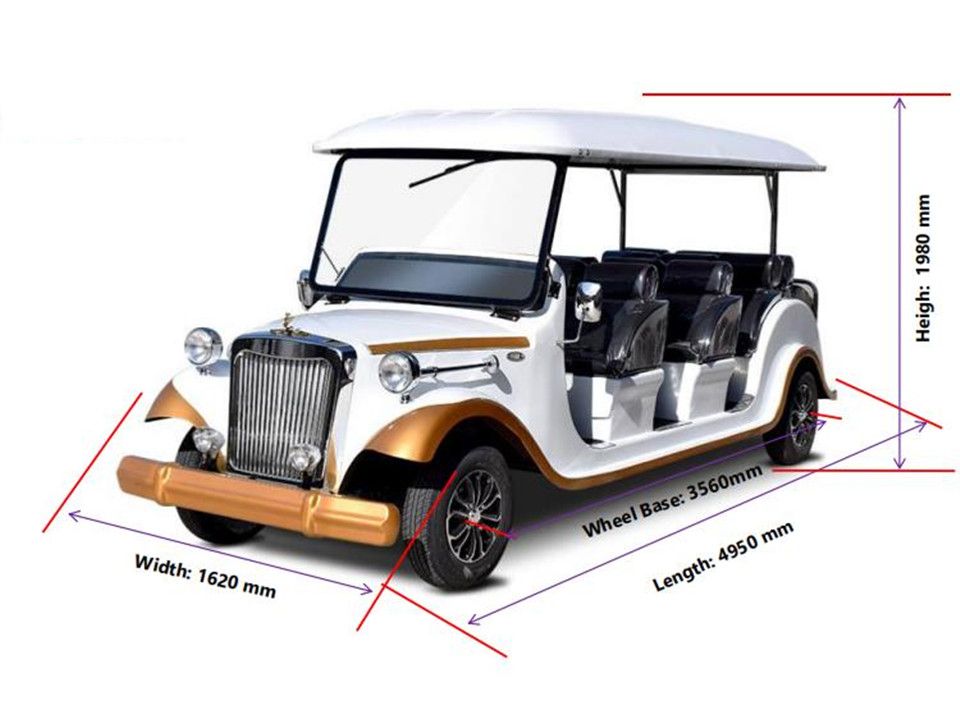

Overall Size:4950*1620*1980mm(L*W*H)
Body Material:Metal
Seating Capacity:11 Seats
Chassis Material:Metal
Speed Range:20-30 km/h
Braking Length:≤ 5 Meters
Climbing Capacity:25 %
Min.Turning Tadius:5900 MM
Wheel Base:3560 MM
Front Rear Tracks:1280/1300 MM
Car Body System
Seat Material:Imitation leather (PU)
Instrument Panel:Combined instrument（front/back signal,light,trumpet,dump energy,current speed display）
Lighting System:Combined type front light and back light,braking light,front/back turning light
Switch System:Light switch,main power switch,electric horn,wiper switch.
Entertainment System:MP3 Player.
Car Body Painting:Color can be customized.
Chassis System
Drive System:Rear-drive motor，Controller adjusted automatically
Steering System:Automatic adjustment rack and pinion direction
Braking System:Four wheel hydraulic brake + double circuit hydraulic brake + parking brake device + brake assist
Tire Details:205-50-10, Aluminium wheel hub, vacuum tire
Front Axle and Suspension:Integral front bridge suspension
Back Axle and Suspension:Integral front bridge suspension
