Single Cab 2 Seats Mini Electric Power Passenger Pick Up Truck | |
Length × width ×height (mm) | 3650×1510×1820 |
Internal dimension of container （L×W×H）(mm) | 1620×1245×300 |
Wheelbase (mm) | 2340 |
Front wheel base (mm) | 1315 |
Rear wheel base (mm) | 1315 |
Front suspension (mm) | 455 |
Rear suspension (mm) | 705 |
Preparation mass (kg) | 850 |
Cargo quality (kg) | 300 |
Seats | 2 |
Total mass (kg) | 1280 |
| |
Maximum speed (km/h) | 80 |
Acceleration time S (0-40km) | 20 |
Grade Ability | 35% |
Minimum turning diameter (m) | ≤11 |
Maximum turning Angle | 30(External) /32(Internal) |
Angle of approach (°) | ≥55 |
Departure Angle (°) | ≥35 |
Minimum ground clearance (mm, no load) | ≥200 |
| |
Steel Pipe door | ○ |
Cargo Box/Container | Rear Open door flatbed |
| |
Power battery Specifications (V/Ah) | 72V240Ah |
Lithium battery | Yes |
Mileage continued (no load)(km) | ≥120 |
Battery charger | 110-220V车载式 |
Charging time (h) | 6~8 |
The motor type | Asynchronous motor |
Motor power (kW) | 10.5KW |
| |
Driving Mode | AWD/RWD Switchable |
Front Suspension | Double cross arm helical spring independent suspension |
After the suspension | Vertical plate spring (3 pieces) |
Front brake | disc brake |
Rear brake | drum brake |
Wheel Rim | 15X5.5J Steel Wheel● 15×6.0J Alloy Wheel optional○ |
Tyre | 195/65 R15 ● (195/65 R15 Dirt tyre optional) |
To structure | pinion and rack |
power-assisted steering | ● |
The brake booster | ● |

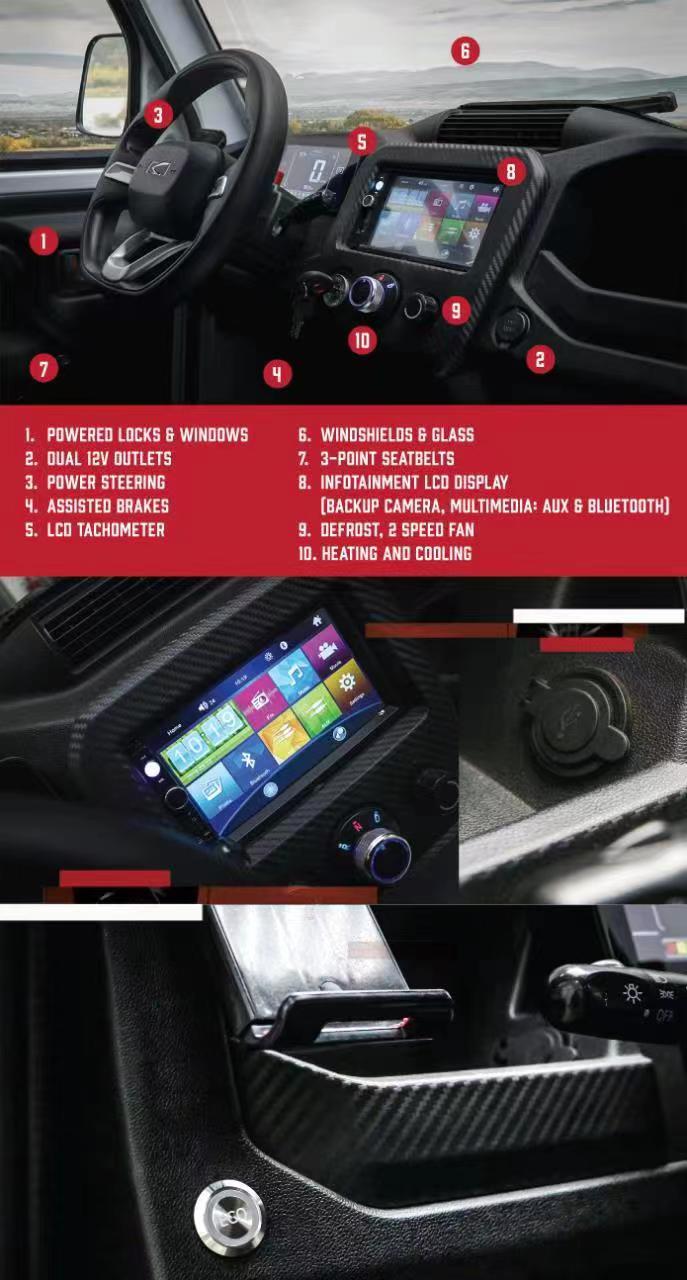

Internal/external configuration | |
windscreen wiper | ● |
spray system | ● |
door lock | Electric |
car window | Electric |
On-board screen | ● |
USB take electricity | ● |
Electric outlet of cigarette lighter | ● |
combination switch | ● |
seat | Independent seat for main/secondary seats |
Independent seats for master and deputy | ● |
rear seat | - |
Rear seat with headrest | - |
sun shield | driver●/ passengers● |
Ceiling interior panel | ● |
The roof rails | - |
warm air blower | ● |
AC | ○ |
Towing hook (with signal line) | ○ |
Interior rearview mirror | ● |
Dome light | Integrated into the visor |

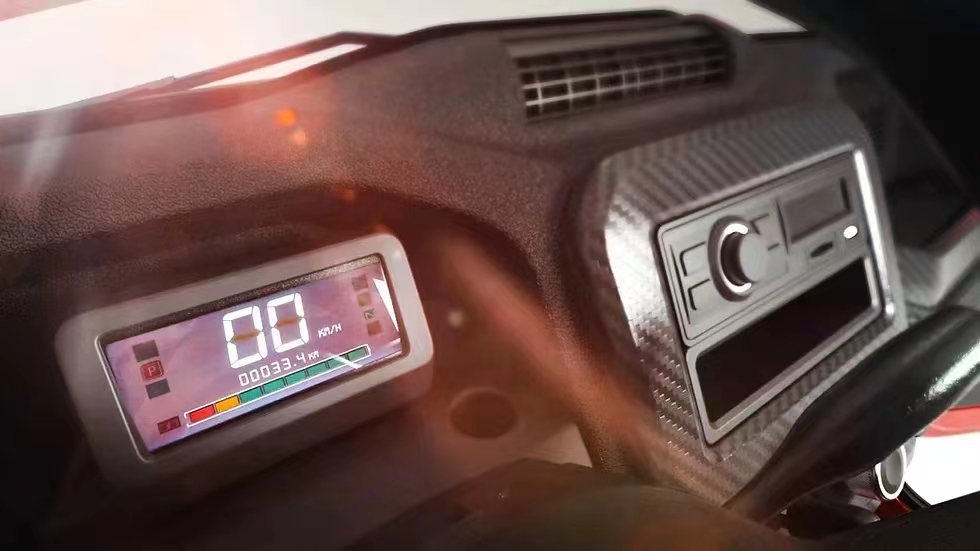

Instrument category | Liquid crystal digital instrument |
Headlight type | LED |
Rear lamp type | LED |
Before the searchlight | ○ (With the front guard of the lamp bracket) |
Spotlight | - |
rear registration plate lamp | ● |
Low speed engine simulator | - |
side reflex reflector | ● |
safety belt | Main/Auxiliary ● (three-point) |
Forward engine room storage tank | ●(small) |
backup camera | ● |
wheel brow | - |
car cover | ○ |
headrest | ● |
Container Treasure (polyurea spraying) | ○ |
child safety lock | - |
mobile phone support | ● |
Before the bar | ○ (Front baffle with a cut） |
European version front guard bar | ○ (Front baffle with a cut） |
Front guard bar with small and large light bracket without license plate mounting plate | ○ (Front baffle with a cut） |
rear bumperr | - |
pedal | - |
The tail logo | ● |
DOT mark (Pickman tail) | - |
Emark identifier (Pickman tail) | - |
roll cage | - |
The instrument type | 72 v new instrument |
110 v battery charger | ○ |
American standard charger plug | - |
European standard charger plug | - |
British standard charger plug | - |
Italian standard charger plug | - |
British instrument | - |
