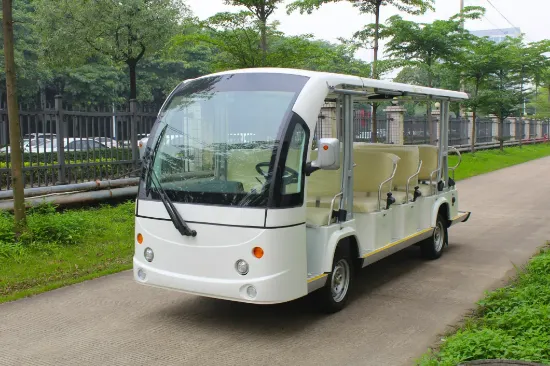

Picture of 14 Seats Electric Mini Bus Sightseeing Shuttle Bus (DN-14M)
Picture of 14 Seats Electric Mini Bus Sightseeing Shuttle Bus (DN-14M)
Picture of 14 Seats Electric Mini Bus Sightseeing Shuttle Bus (DN-14M)

14 Seats Electric Mini Bus Sightseeing Shuttle Bus (DN-14M)

Be the first to review this product
Call for pricing
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Electric sightseeing car specifications:


Max. speed (km/h)28km/hWheelbase2670mm
Front wheel tread1240mmRear wheel tread1220mm
BatteryLithium battery 72V 200Ah/300Ah; 96V 400AhMinimum turning radius (m)6.25m
Motor72V 7.5KW AC motorBrake range (m)≤5
Controller72V 400AMax climbing ability (loaded)20%
Charger72V/20AOverall dimensions(mm)4981*1520*2060mm
Suspensionfront suspension:McPherson type independent suspensionMax. loading         weight (kgs)1190
SteeringRack and pinion type with power steering  Ground clearance 100 (mm)
Brake SystemFour wheels hydraulic braking systemChassisSteel
Passenger capacity14 personQuantity per Container2/4/4pcs*20FT/40GP/40HQ
Range (loaded) (km)150kmrear suspension: parallel leaf spring
